New

Lab Companion™ OF4-10P Forced Convection Oven (112L), Program, Solid Door, 120v

Product no.: AAH12936U

"Our 42nd Year of Competitive Pricing"

Old price $3,947.00

$3,473.00

You save $474.00

Price plus sales tax, plus delivery

Description

OF4-10P Forced Convection Oven (112L), Programmable, Solid Door, Temp range: Amb +10 to 250c, 120v

The OF4-P Programmable Series provides unattended operation with an intelligent programmable controller.

Specs & Ordering Information
Model	Solid door (without window)	OF4-03P	OF4-05P	OF4-10P	OF4-15P
Model	Window door	OF4-03PW	OF4-05PW	OF4-10PW	OF4-15PW
Chamber volume (L/cu ft)		26/0.92	61/2.15	112/3.96	147/5.19
Temperature ¹⁾	Range (℃/℉)	Amb. + 10~250 / Amb. + 18 ~ 482
	Fluctuation at 100℃ (±℃/±℉)	0.3/0.54	0.3/0.54	0.3/0.54	0.3/0.54
	Variation at 100℃ (±℃/±℉)	1.4/2.52	1.9/3.42	1.7/3.06	1.5/2.70
	Heating time to 100℃ (min)	8	10	14	15
	Recovery time at 100℃ (min)	4	4	4	4
Control Panel		5-inch TFT Color LCD
Communication interface		USB, RS-232, BMS
Function	Program setting	10 programs, 10 steps, start temp.
	Scheduler	Set the day, time, and program No
	Recently event record	36 each
	Fan speed adjustable	Three-step wind speed settings
	Recommended temperature	Three frequently used temperature settings suggested
	Graph	Available checking the stored and real-time data as graphs
	Data storage	Save the test data in CSV format
	Temp. ramping rate (℃/min. / ℉/min.)	0~13/0~23.4	0~9/0~16.2	0~6/0~10.8	0~5/0~9
Dimensions	Interior (WxDxH) (mm, inch)	300x210x400, 11.80x8.27x15.75	380x330x480, 14.97x13.00x18.9	485x350x655, 19.09x13.78x25.79	550x376x710, 21.65x14.80x27.95
	Exterior (WxDxH) (mm, inch)	478x527x604, 18.82x 20.75x23.78	558x648x684, 21.97x25.51x26.93	663x677x859, 26.1x26.65x33.82	728x704x914, 28.66x27.72x35.98
	Net weight (kg/lbs)	33/72.8	53/116.8	63/138.9	73/160.9
Shelves	Quantity of shelves (Standard/Max.)	2/4	2/5	2/8	2/9
Max. Load per shelf (kg/lbs)		30/66.1
Number of Air changes per hour at 100 ℃ 2)		123	22	18	11
Electrical requirements (230V, 50/60Hz, A)		6.1
Cat. No.	Solid door (without window)	AAH12915K	AAH12925K	AAH12935K	AAH12945K
Cat. No.	Window door	AAH12955K	AAH12965K	AAH12975K	AAH12985K
Electrical requirements (120V, 60Hz, A)		123
Cat. No.	Solid door (without window)	AAH12916U	AAH12926U	AAH12936U	AAH12946U
Cat. No.	Window door	AAH12956U	AAH12966U	AAH12976U	AAH12986U

1) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the fluctuation and variation values will increase. (According to DIN 12880, before 2013)
2) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the number of air changes may decrease. (According to ASTM D 5374, reapproved 1999)

Features

Easy setting the programmed temperature for everyone

User interface that provides a quick view of temperature changes (heating, stability, cooling, and fan speed).

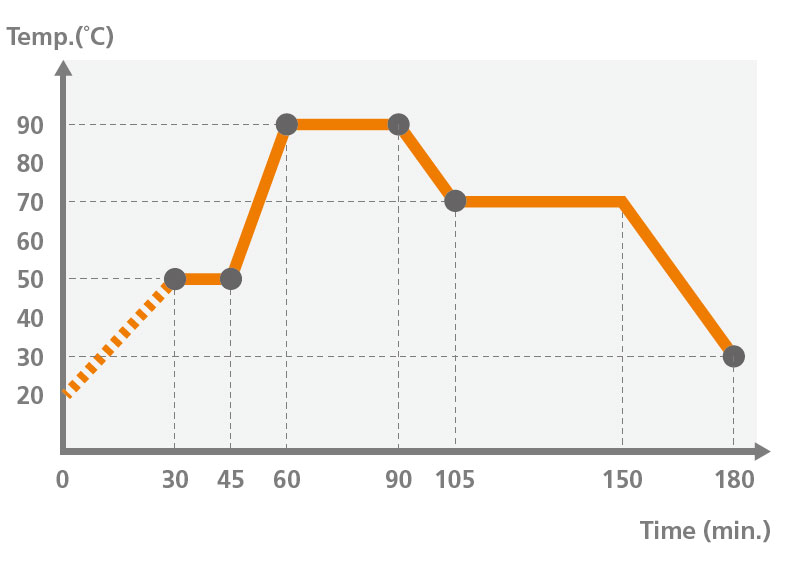

Set various test conditions using 10 programs and 10 steps, which can be repeated up to 99 times.
Start temperature, temperature, and time for each step, and Opti-flow™ are all adjustable as desired.

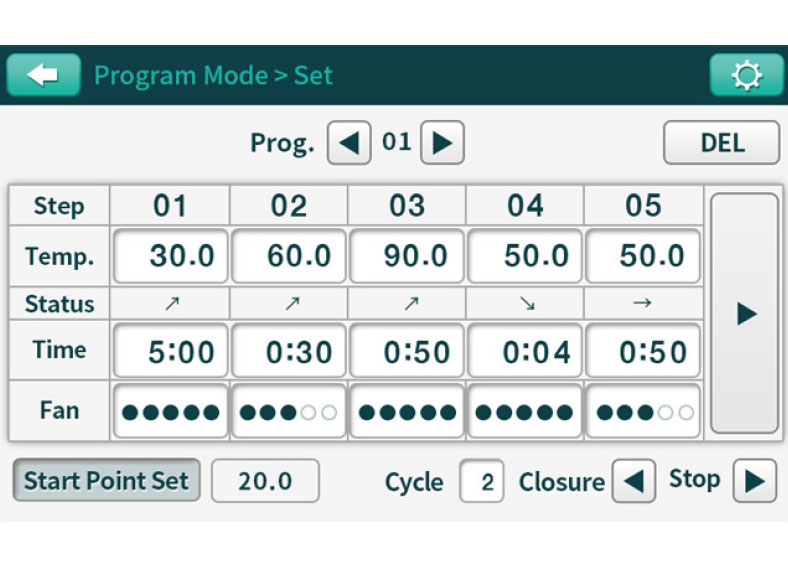

Easy and intuitive program setting interface

Program setting can be flexibly adjusted according to each test requirement

Structural and functional features for improved user convenience

Opti-flow™ is a function to flexibly adjust the fan according to the specimen type and test conditions.
The stacking kit ensures safe fitting, thus doubling the capacity in a given area for improved space efficiency (Option).
Hands-free™ door system to allow users to easily open the door while carrying samples with both hands.

Fan speed can be adjusted manually according

Two-unit stacking for improved space efficiency (optional)

Real-time monitoring to check the status of the device

BMS communication port helps monitor the device temperature on the building management system (Option).
Monitor and control via mobile app anytime, anywhere with "LC Connected " mobile monitoring system (Option).

BMS communication port that helps enable quick response through continuous monitoring (option)

Real-time monitoring and control via mobile (option)

Convenient checking for the test progress and data

RS-232/USB port and compatible software included enabling easy device control and data management using a PC.
Test data is automatically saved and easily downloaded via USB; easy to edit and use (in CSV format).
36 latest events, such as errors and door opened or closed, are automatically recorded, helping users obtain feedback on experimental results.

Data storage using USB ports Up to 36 latest events automatically recorded

Reliable temperature control performance based on the stable control mechanism

Wide temperature range of up to 250℃.
3-point temperature calibration ensures high-temperature accuracy over a wide temperature range.
Ramping rates (℃/min) are flexibly adjustable for each test performed.
Excellent temperature distribution through the formation of optimal airflow for uniform heat transfer.
Temperature variation (±1.9℃ or below at 100℃).

Three-point temperature calibration that ensures precise temperature control Ramping rates adjusted for each test performed

Matrix

Exterior Dimensions Interior Dimensions

Exterior & Interior Dimensions (mm, inches)
Model	OF4-03	OF4-05	OF4-10	OF4-15
A: Maximum depth with the door opened	868 / 34.2	1060 / 41.7	1185 / 46.7	1271 / 50.0
B: Maximum width with the door opened	695 / 27.4	809 / 31.9	958 / 37.7	1050 / 41.3
C: Interior width	300 / 11.8	380 / 15.0	485 / 19.1	550 /21.7
D: Interior height	400 / 15.7	480 / 18.9	655 / 25.8	710 / 28.0
E: Interior depth	210 / 8.3	330 / 13.0	350 / 13.8	376 / 14.8
F: Shelve width	266 / 10.5	346 / 13.6	451 / 17.8	516 / 20.3
G: Shelve depth	195 / 7.7	315 / 12.4	335 / 13.2	361 / 14.2
H: Gap between shelf racks	30 / 1.2	30 / 1.2	30 / 1.2	30 / 1.2
I: Gap between uppermost shelve and interior ceiling	80 / 3.1	90 / 3.5	88 / 3.5	85 / 3.3
J: Space for sensor installation	3.8 / 0.15	3.8 / 0.15	3.8 / 0.15	3.8 / 0.15

Request a Quote

Optional Accessories (Shelves and Bracket)
Model	OF4-03	OF4-05	OF4-10	OF4-15
Wire Shelf	00FDA0009739	00FDA0009738	00FDA0009737	00FDA0009736
Perforated Shelf	AAA125341	AAA125342	AAA125343	AAA125344
Double-Stacked Bracket	AAA125531	AAA125531	AAA125532	AAA125532

Optional Accessories (Communication Devices)
Model	OF4-P/V	PF4-S
BMS Port	AAA125534	AAA125534
LC Green Box	AAHQ1011K	AAHQ1011K
Communication Port	Standard	AAA125523
