Lab Companion™ OF4-15V Forced Convection Oven (147L), Advanced, Solid Door, 120v

Product no.: AAH12746U

"Our 42nd Year of Competitive Pricing"

Old price $3,668.00

$3,227.80

You save $440.20

Price plus sales tax, plus delivery

Delivery weight: 161 lb

Description

OF4-15V Forced Convection Oven (147L), Advanced, Solid Door, Temp range: Amb +10 to 250c, 120v

The OF4-V Advanced Series provides real-time graphs that allow users to view events and alarms at a glance. Superb air dispersion and uniform temperature distribution.

Specs & Ordering Information
Model	Solid door (without window)	OF4-03V	OF4-05V	OF4-10V	OF4-15V
Model	Window door	OF4-03VW	OF4-05VW	OF4-10VW	OF4-15VW
Chamber volume (L/cu ft)		26/0.92	61/2.15	112/3.96	147/5.19
Temperature ¹⁾	Range (℃/℉)	Amb. + 10~250 / Amb. + 18 ~ 482
	Fluctuation at 100℃ (±℃/±℉)	0.3/0.54	0.3/0.54	0.3/0.54	0.3/0.54
	Variation at 100℃ (±℃/±℉)	1.4/2.52	1.9/3.42	1.7/3.06	1.5/2.70
	Heating time to 100℃ (min)	8	10	14	15
	Recovery time at 100℃ (min)	4	4	4	4
Control Panel		5-inch TFT Color LCD
Communication interface		USB, RS-232, BMS
Function	Recently event record	36 each
	Fan speed adjustable	Three-step wind speed settings
	Recommended temperature	Three frequently used temperature settings suggested
	Graph	Available checking the stored and real-time data as graphs
	Data storage	Save the test data in CSV format
	Temp. ramping rate (℃/min. / ℉/min.)	0~13/0~23.4	0~9/0~16.2	0~6/0~10.8	0~5/0~9
Dimensions	Interior (WxDxH), mm/inch)	300x210x400, 11.80x8.27x15.75	380x330x480, 14.97x13x18.90	485x350x655, 19.09x13.78x25.79	550x376x710, 21.65x14.80x27.95
	Exterior (W x D x H, mm/inch)	478x527x604, 18.82x20.75x23.78	558x648x684, 21.97x25.51x26.93	663x677x859, 26.1x26.65x33.82	728x704x914, 28.66x7.72x35.98
	Net weight (kg/lbs)	33/72.8	53/116.8	63/138.9	73/160.9
Shelves	Quantity of shelves (Standard/max.)	2/4	2/5	2/8	2/9
Max. Load per shelf (kg/lbs)		30/66.1
Number of Air changes per hour at 100 ℃ 2)		123	22	18	11
Electrical requirements (230V, 50/60Hz, A)		6.1
Cat. No.	Solid door (without window)	AAH12715K	AAH12725K	AAH12735K	AAH12745K
Cat. No.	Window door	AAH12815K	AAH12825K	AAH12835K	AAH12845K
Electrical requirements (120V, 60Hz, A)		123
Cat. No.	Solid door (without window)	AAH12716U	AAH12726U	AAH12736U	AAH12746U
Cat. No.	Window door	AAH12816U	AAH12826U	AAH12836U	AAH12846U

1) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the fluctuation and variation values will increase. (According to DIN 12880, before 2013)
2) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the number of air changes may decrease. (According to ASTM D 5374, reapproved 1999)

Features

A wide touch-screen controller that provides the device information intuitively

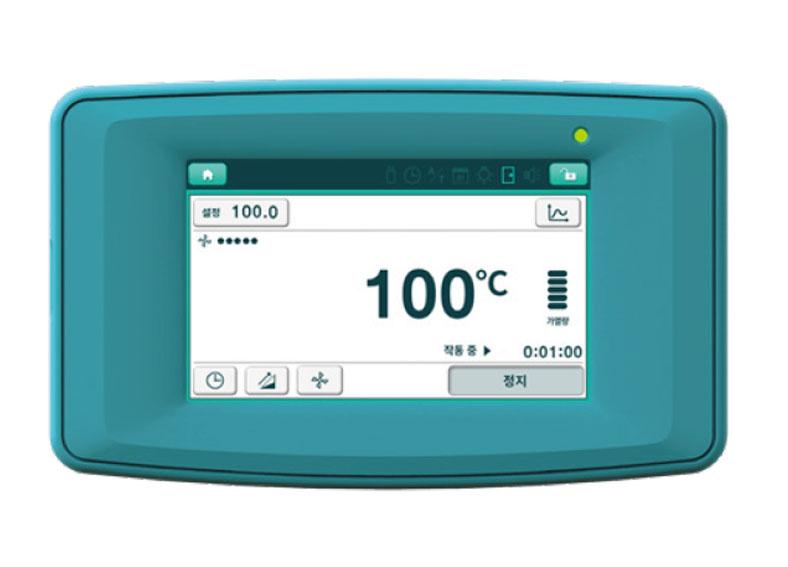

5-inch TFT touch controller that enables intuitive control of the device.

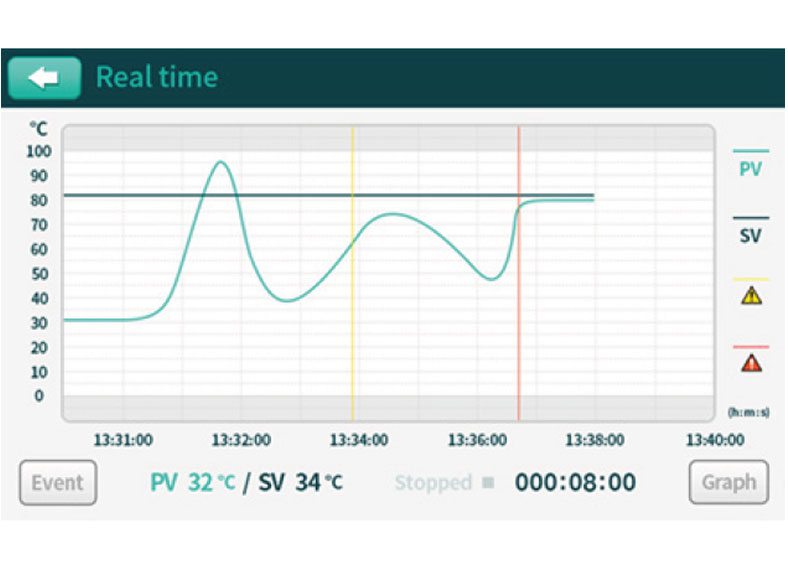

Real-time graphs allow users to view events and alarms at a glance so that the progress can be easily and intuitively monitored.
Auto 3 temperature recommendation based on operating history without any recording or storage.
Wait-on/, Wait-off, timer setting allowing efficient test schedule management.

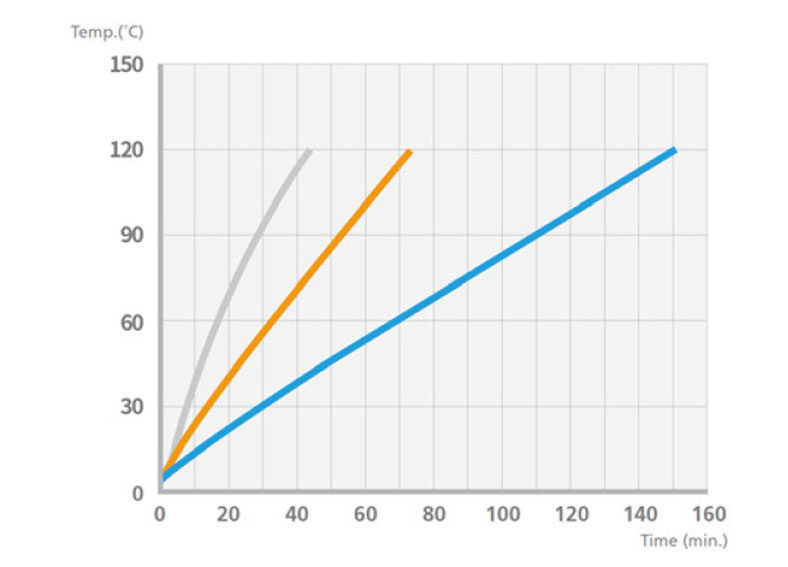

Ramping rates (℃/min) are flexibly adjustable for each test performed.

5-inch Touch Controller, easy and intuitive program setting interface

Program setting can be flexibly adjusted according to each test requirement

Structural and functional features for improved user convenience

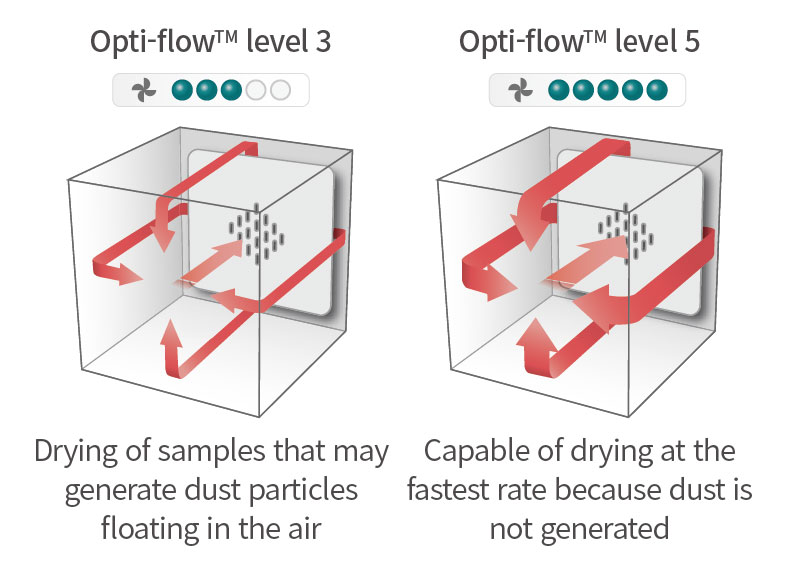

Opti-flow™ is a function to flexibly adjust the fan according to the specimen type and test conditions.

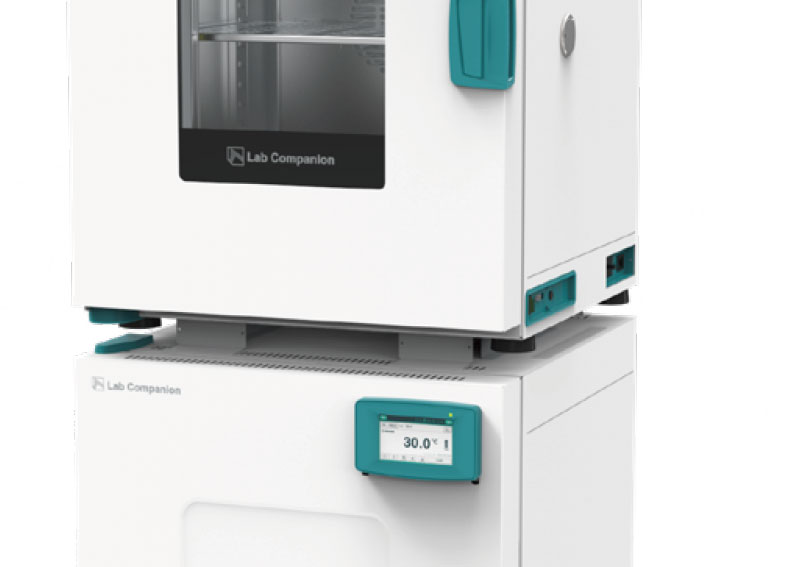

The stacking kit ensures safe fitting, thus doubling the capacity in a given area for improved space efficiency (Option).
Hands-free™ door system to allow users to easily open the door while carrying samples with both hands.

Fan speed can be adjusted manually according

Two-unit stacking for improved space efficiency (optional)

Real-time monitoring to check the status of the device

BMS communication port helps monitor the device temperature on the building management system (Option).

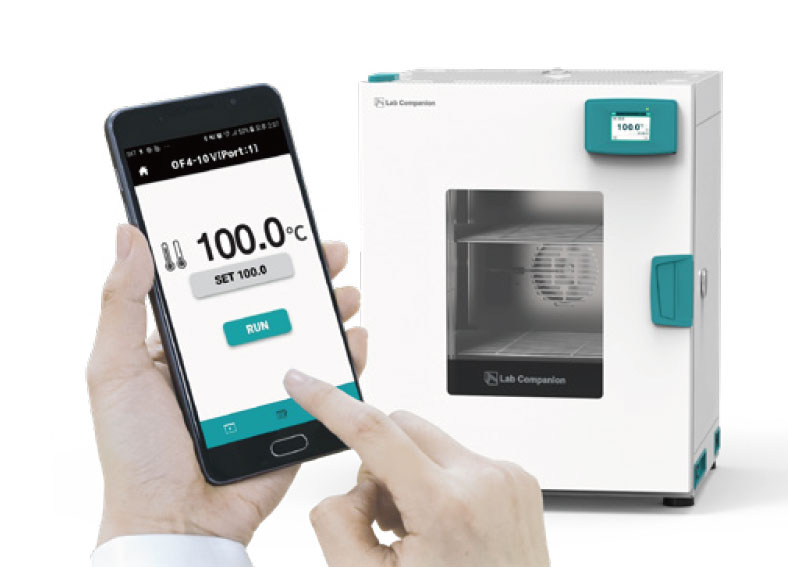

Monitor and control via mobile app anytime, anywhere with "LC Connected " mobile monitoring system (Option).

BMS communication port that helps enable quick response through continuous monitoring (option)

Real-time monitoring and control via mobile (option)

Convenient checking for the test progress and data

RS-232/USB port and compatible software included enabling easy device control and data management using a PC.

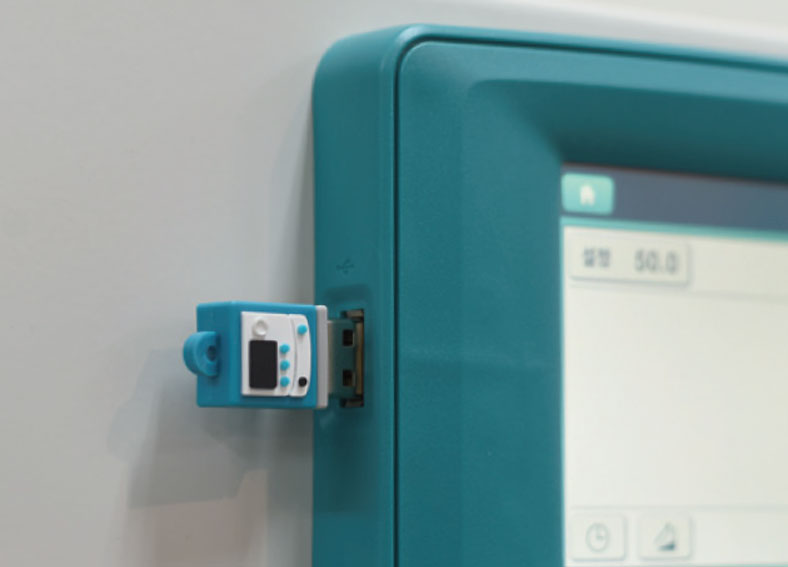

Test data is automatically saved and easily downloaded via USB; easy to edit and use (in CSV format).

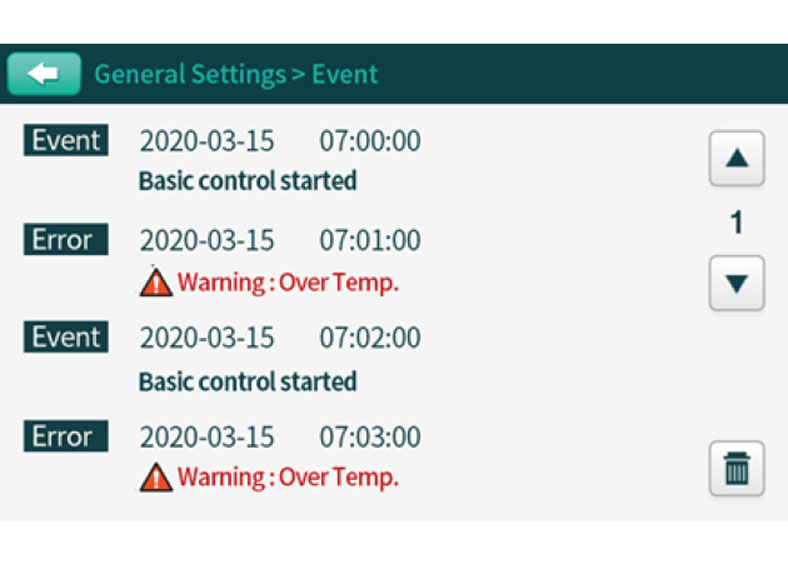

36 latest events, such as errors and door opened or closed, are automatically recorded, helping users obtain feedback on experimental results.

Data storage using USB ports Up to 36 latest events automatically recorded

Reliable temperature control performance based on the stable control mechanism

Wide temperature range of up to 250℃.

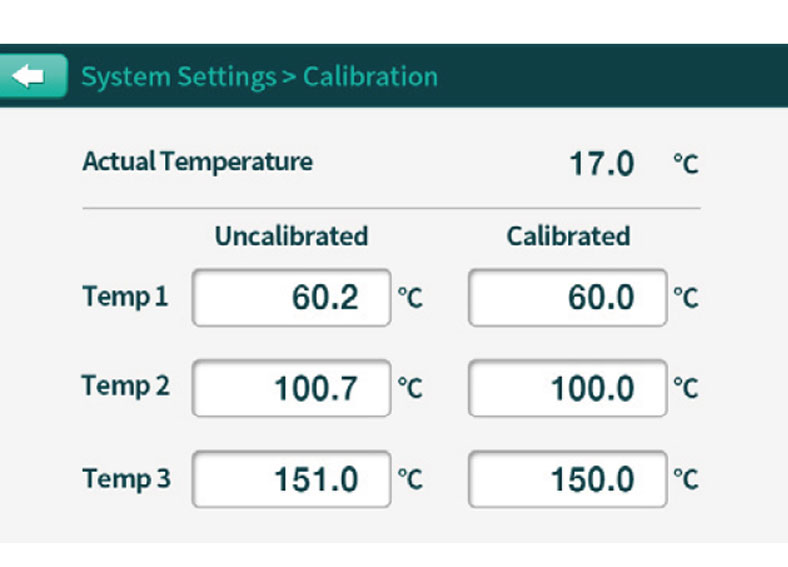

3-point temperature calibration ensures high-temperature accuracy over a wide temperature range.
Ramping rates (℃/min) are flexibly adjustable for each test performed.
Excellent temperature distribution through the formation of optimal airflow for uniform heat transfer.
Temperature variation (±1.9℃ or below at 100℃).

Three-point temperature calibration that ensures precise temperature control Ramping rates adjusted for each test performed

Matrix

Exterior Dimensions Interior Dimensions

Exterior & Interior Dimensions (mm, inches)
Model	OF4-03	OF4-05	OF4-10	OF4-15
A: Maximum depth with the door opened	868 / 34.2	1060 / 41.7	1185 / 46.7	1271 / 50.0
B: Maximum width with the door opened	695 / 27.4	809 / 31.9	958 / 37.7	1050 / 41.3
C: Interior width	300 / 11.8	380 / 15.0	485 / 19.1	550 /21.7
D: Interior height	400 / 15.7	480 / 18.9	655 / 25.8	710 / 28.0
E: Interior depth	210 / 8.3	330 / 13.0	350 / 13.8	376 / 14.8
F: Shelve width	266 / 10.5	346 / 13.6	451 / 17.8	516 / 20.3
G: Shelve depth	195 / 7.7	315 / 12.4	335 / 13.2	361 / 14.2
H: Gap between shelf racks	30 / 1.2	30 / 1.2	30 / 1.2	30 / 1.2
I: Gap between uppermost shelve and interior ceiling	80 / 3.1	90 / 3.5	88 / 3.5	85 / 3.3
J: Space for sensor installation	3.8 / 0.15	3.8 / 0.15	3.8 / 0.15	3.8 / 0.15

Request a Quote

Optional Accessories (Shelves and Bracket)
Model	OF4-03	OF4-05	OF4-10	OF4-15
Wire Shelf	00FDA0009739	00FDA0009738	00FDA0009737	00FDA0009736
Perforated Shelf	AAA125341	AAA125342	AAA125343	AAA125344
Double-Stacked Bracket	AAA125531	AAA125531	AAA125532	AAA125532

Optional Accessories (Communication Devices)
Model	OF4-P/V	PF4-S
BMS Port	AAA125534	AAA125534
LC Green Box	AAHQ1011K	AAHQ1011K
Communication Port	Standard	AAA125523
